16CH 960H DVR-SELTI CCTV Camera

16CH 960H DVR

2015-7-25 View:

Brand SELTI
Type SVR-GD-16D

Introduction

Ø Compression: Adopt pure two-stream H.264 compression, stream up to 35% lower than traditional DVR.

Ø Display：HDMI VGA&BNC（AV）output synchronously which revolutionized the traditional monitoring display.

Ø Record：Full real-time record(25f,30f /ch/D1/960H), multi-channel synchronous playback

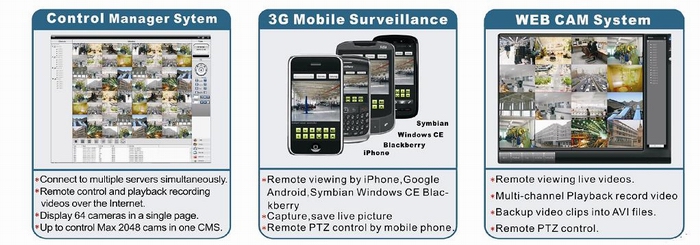

Ø Mobile monitoring：Support various kinds of mobile phone monitoring（iPhone，Windows Mobile，BlackBerry，symbian，Android）

Ø HDD port: support 4/8 PCS SATA HDD，support SATA DVD-RW(internal)

Ø Device port: support 2 PCS USB2.0, achieve to USB mouse, backup, USB-RW and upgrading operations stably.

Ø Operation interface: Similar WINDOWS operation, powerful the right-click menu function , easily to operation.

Ø Wireless : Support 3G dial-up and WIFI module expansion, to easily set up the wireless monitoring

Ø Network: powerful network service（support DHCP、PPPOE、FTP、DNS、DDNS、NTP、UPNP、Email、permissions、

IP search、alarm center ect.）,P2P, perfect matching (WEB, client, SDK), easy to achieve interoperability, built-in own domain functions,

more powerful to realize remotely monitor and control.

Ø Audio processing: realize audio listening and storage, perfect duplex Voice talk back by pickup device.

Ø Others:

Perfect protection circuit ,the unique triple watchdog fuction ,ensure the DVR never hangup.

with the unique black box technology ,can monitor the whole run process of the DVR ,can greatly reduce the maintenance costs.

Ø Multi Languages: 29 countries languages（English, Farsi, French, German, Greece, Hungary, Japanese, Poland, Portugal, Russian, Spaish, Thai, Chinese, Turkish）, also can customized lanuage ,OEM，ODM

Ø Personalized Customization: support flexible personalized customization and free to replace the boot screen (company LOGO). Customers can easily customize their own surveillance products, greatly meet various individual needs.

Ø Packing Accessories: remote controller, mouse, CD-ROM, quick installation profiles, power supply, screws.

Model		SVR-GD-8D	SVR-GD-16D
System	CPU	SOC
	Operation System	LINUX
	System resource	Multi-channel real-time record, multi-channel real-time playback, multiple multiplayer online operations, cell phone monitoring, USB backup
Interface	GUI	24 bits full color GUI, support mouse , control panel, remote controller, keyboard
	Display	1/4/8/9/16CH
Video	Video standard	PAL（625 lines，50f/s）；NTSC（525 lines，60f/s）
	Display	High definitionD1，high definition VGA
	Playback	D1
	Motion detection	396（22×18）detection areas/ch ,muti sensitivity can be set
Audio	Audio compression	G711A
	TB	support
Record&playback	Record model	manual>alarm>motion detection>timer
	playback	Single CH , muiti-ch
	Video search	Time, loglist, event, channel
Storage&backup	HDD/space	Audio: 28.8M/h＋video: 25～450M/h
	Video storage	HDD, web
	Backup model	Web, USB, built-in DVD-RW（optional）
Port	Video input	8CH BNC	16CH BNC
	Video output	1CH BNC, 1.0Vp-p,75Ω, 1CH VGA output, 1CH HDMI
	Loop output	8CH BNC	16CH BNC
	Audio input	8CH RCA	8CH RCA
	Audio output	1CH RCA，200-2800mV,30KΩ
	Alarm input	8CH	16CH
	Alarm output	4CH
	Web	RJ45 10M/100M/1000M Ethernet
	PTZ	support
	USB	2PCS USB2.0
	HDD	8PCS SATA HDD	8PCS SATA HDD
Others	Mobile monitoring	Support iPhone，Windows Mobile，BlackBerry，symbian，Android, ect.
	3G	WIFI、WLAN、3G（optional）
	Power	Built-in power（AC100V-250 50/60Hz）
	Network function	Email alarm e-mail, FTP, DDNS Dynamic DNS, PPPoE dial-up, DHCP automatically obtain IP address, NTP automatic calibration, UPNP port mapping automatically, IP black list, with their own domain name
	consumption	<8-15W（not include HDD)
	work temperature	0℃-＋55℃
	Work humidity	10%－90%
	Atmospheric pressure	86kpa－106kpa
	Unit Size	430mm(L)410mm(W)85mm(H)
	Net weight	9kg
	Packing	2PCS/carton, carton size: 580mm(L)555mm(W)370mm(H), gross weight: 19KG
